Real flightline QA walkthrough

This is a transparent record of one end-to-end real-data validation run. It is evidence that the software stages and QA reporting work together on a large NEON file; it is not a claim that one flightline validates the scientific method across sites, seasons, terrain, or land-cover classes.

Input and run scope

Item Value
Source NEON_D10_R10C_DP1_L002-1_20210915_directional_reflectance.h5
Source size 2,532,249,598 bytes (2.4 GB)
Site/date R10C, 2021-09-15
Raster dimensions 1,115 lines × 5,351 samples × 426 bands
QA mode deep
Extraction A bounded 4 × 4-pixel validation polygon
Merged output 25 rows × 929 columns, including 484 spectral columns
Table products 18 readable Parquet files

The source HDF5 remains local and is ignored by Git. The approximately 21 GB of intermediate raster and table products were intentionally not added to the repository. Only the approximately 4.6 MB report bundle is retained here.

NEON's product guidance says stored reflectance is scaled by 10,000 and missing pixels use -9999. SpectralBridge now persists both facts in each ENVI header and stage QA converts metrics to unit reflectance before evaluation. See the official NEON quick-start guide.

What happened

Stage Status Main evidence
Acquisition PASS The expected 2.4 GB HDF5 existed and received a bounded provenance fingerprint.
Input reflectance WARN The flight footprint occupies 0.5713 of the rectangular raster, but valid support within the footprint is 1.0. All-band values above 1.2 remain visible at 0.05932; 68 known poor-quality bands are retained and labeled.
Correction parameters WARN Required model artifacts and all six geometry fields were present, but four persisted geometry summaries contain values outside their physical radian ranges. They remain visible and unmasked for review.
BRDF + topographic correction WARN The same 68 poor-quality wavelength bands remain retained and labeled; correction magnitude passed with absolute difference q99 of 0.003894.
Spectral convolution PASS Within-footprint support was 1.0, negative fraction was 0, and the all-band fraction above 1.2 was 0.0000143.
Analysis tables PASS All 18 declared Parquet products were readable; merged output had 25 rows and 929 columns.

WARN marks information that needs interpretation; it does not mean the pipeline crashed. The full process exited normally and created the correction, convolution, extraction, merge, and QA artifacts.

The correction-parameter warning is specifically about the persisted summary, not a claim that every corrected pixel is invalid. sensor_zn, sensor_az, slope, and aspect include large negative summary values consistent with source no-data contamination. QA now marks all four fields, plots the unfiltered summaries against fixed physical ranges, and leaves the correction files unchanged. A later pipeline change can decide where no-data should be excluded; this audit does not silently make that scientific choice.

The original all-array valid fraction of 0.5713 is still present in the JSON for transparency. QA now interprets it as bounding-box occupancy: all 426 bands had valid values at every sampled pixel inside the observed footprint, for a within-footprint valid fraction of 1.0. The 42.87% structural background remains in the files as no-data and is neither cropped nor masked by QA.

The original all-band fraction above 1.2 is also retained: 0.059315 before correction and 0.059317 after correction. QA labels 68 of 426 wavelengths using the long-standing repository ranges 300–400, 1337–1430, 1800–1960, and 2450–2600 nm. Within those retained bands, 0.3715 of valid sampled values exceed 1.2; over the other 358 wavelengths, the fraction is only 1.418e-05 before correction. This is report-only classification: no band, pixel, or stored value was removed, replaced, or rewritten. The correction comparison was otherwise close: bias 1.88e-05, MAE 0.000233, RMSE 0.000942, slope 1.00003, and R² 0.999991 on the deterministic sample.

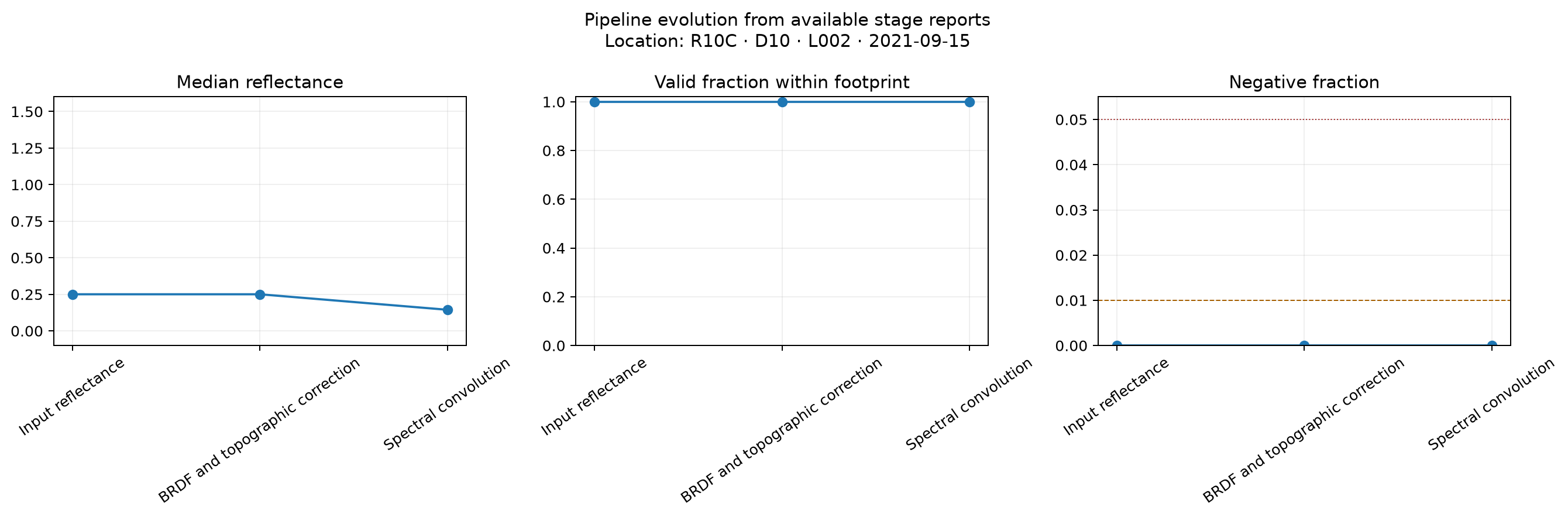

Pipeline-level evolution of evaluated metrics

The regenerated figures use QA plot-contract version 1.1. Their physical axes and color scales are fixed for comparison with later flightlines, and each figure identifies R10C · D10 · L002 · 2021-09-15 within the image. Spatial panels use the ENVI map metadata to show UTM easting and northing. Display-range clipping is annotated and never removes values from the metrics or products. Every canonical stage now has at least one figure. Acquisition shows the source artifact inventory; correction parameters show BRDF coefficient profiles and the unfiltered persisted geometry summaries; convolution adds one paired brightness-correction audit per Landsat product; and analysis tables compare row count, schema width, and file size for extracted and merged Parquet outputs.

Reports and reproducibility artifacts

The JSON reports include the package version, Git revision, parameters, deterministic sampling record, artifact fingerprints, checks, thresholds, and explicit reasons for unevaluated diagnostics. Absolute paths in that record are the execution environment's provenance paths; they are not required to open the copied reports.

What this run could not evaluate

  • Topographic-only versus BRDF-only attribution, because the canonical pipeline deliberately persists their combined corrected output rather than a topographic-only intermediate.
  • A second application using a genuinely different correction chunking scheme; no independent application-chunk control is currently part of the contract.
  • Per-output-band SRF support, because the convolved artifact does not yet persist its exact spectral-response weights.
  • Sensor-triangle path/cycle consistency and held-out translation residuals, because a NEON processing run does not create fitted translation edges or independent paired observations.
  • Direct Landsat Collection 2 NBAR comparability, which belongs to the separate Landsat acquisition and translation validation workflow.

These limitations remain NOT EVALUATED in the reports rather than being silently omitted or replaced with synthetic evidence.

Bugs revealed by the real run

The first pass found four output-contract problems that the new regression tests now protect:

  1. Raw and corrected ENVI headers did not serialize reflectance scale and no-data values for downstream readers.
  2. Landsat brightness adjustment transformed no-data sentinels as though they were reflectance.
  3. Polygon-mode stage QA did not discover all Parquet products even though the pipeline had written them.

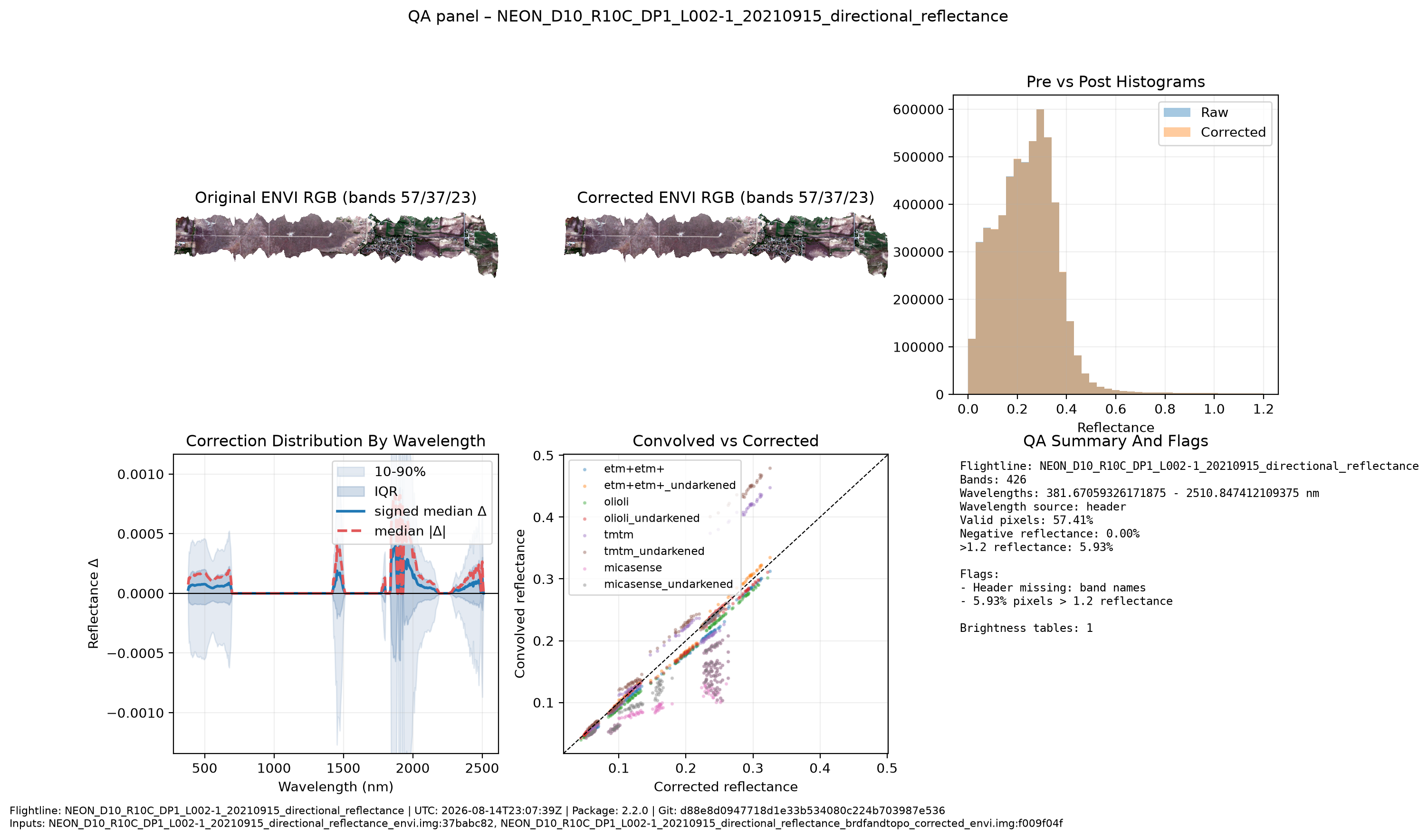

  4. The compatibility QA panel treated stored reflectance counts and no-data as physical reflectance and used a count-scale wavelength axis. It now reads the persisted scale/no-data contract and displays physical reflectance.

It also exposed a harmless NumPy warning caused by eager division while choosing a neutral BRDF factor for non-positive kernels. The guarded division now avoids the warning without changing the correction rule or scientific result.
