Stage QA test guide¶

This page explains every check family in the automatic stage reports, in pipeline order. Observed values and figures come from the completed R10C · D10 · L002 · 2021-09-15 run. The explanations are the reusable contract; the observed values are one example.

Three different questions

output_exists asks whether software produced an artifact. Numerical checks ask whether the artifact obeys an implementation or provisional QA contract. Scientific validation asks whether the result is accurate across representative real conditions. A PASS in one category does not answer the other two.

Status language¶

Status	Meaning	Required response
`PASS`	Evaluated value meets its current contract.	Continue, while retaining provenance and limitations.
`WARN`	Pipeline completed, but evidence needs interpretation.	Review the named metric and figure; do not hide or automatically delete the value.
`FAIL`	A required artifact is missing or an evaluated metric crosses its fail rule.	Stop scientific interpretation until the cause is understood.
`NOT EVALUATED`	Available artifacts cannot support the requested diagnostic.	Read the recorded reason; do not reinterpret absence as a pass.

Real-run stage summary¶

Stage	Status	Checks	Full report
Acquisition	PASS	1	HTML
Input reflectance	WARN	6	HTML
Correction parameters	WARN	4	HTML
BRDF and topographic correction	WARN	8	HTML
Spectral convolution and brightness	PASS	22	HTML
Parquet extraction and merge	PASS	19	HTML

Acquisition¶

Observed status: PASS · open HTML · open JSON

Confirm that the source artifact exists and record bounded provenance before reading reflectance.

Checks in this stage¶

Check family	Count	Observed	Value(s)	Rule	What it asks	What to review
`output_exists:*`	1	PASS	1/1 present	Categorical contract	Does every declared canonical output exist? Each expected file is present at the recorded path.	A missing output is a stage failure; inspect the stage log before trusting downstream files.

Example figure from R10C¶

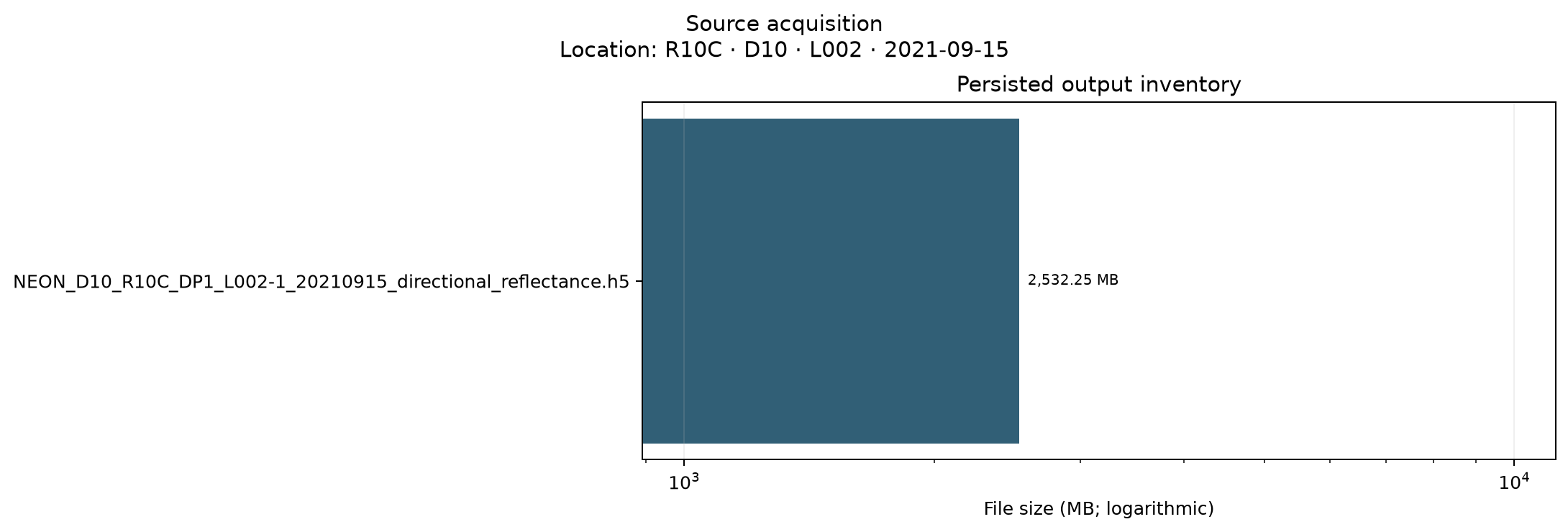

R10C acquisition artifact inventory — The real R10C acquisition stage records the 2.4 GB HDF5 and embeds site, domain, flightline, and date in the figure.

Explicitly unavailable diagnostics¶

None for this stage in the real run.

Input reflectance¶

Observed status: WARN · open HTML · open JSON

Establish spatial and spectral support before correction while distinguishing the observed footprint from rectangular background.

Checks in this stage¶

Check family	Count	Observed	Value(s)	Rule	What it asks	What to review
`output_exists:*`	2	PASS	2/2 present	Categorical contract	Does every declared canonical output exist? Each expected file is present at the recorded path.	A missing output is a stage failure; inspect the stage log before trusting downstream files.
`within_footprint_valid_reflectance_fraction`	1	PASS	1	warn `0.9`; fail `0.7`	How complete is spectral support inside the observed flight footprint? Above 0.90 passes; 0.70–0.90 warns; at or below 0.70 fails.	Separate real missing support from rectangular background outside the flight track.
`negative_reflectance_fraction`	1	PASS	0	warn `0.01`; fail `0.05`	How often is valid reflectance negative? Below 0.01 passes; 0.01–0.05 warns; at or above 0.05 fails.	Review scaling, correction behavior, shadows, and wavelength-specific artifacts.
`usable_band_reflectance_above_1_2_fraction`	1	PASS	1.41814e-05	warn `0.01`; fail `0.05`	How often do wavelengths not already labeled poor-quality exceed 1.2? Below 0.01 passes; 0.01–0.05 warns; at or above 0.05 fails.	Inspect scaling and spectral regions; all-band values remain separately reported.
`known_bad_spectral_bands_retained`	1	WARN	68	Categorical contract	Were established poor-quality wavelength regions recognized and retained? No labeled bands passes; retained labeled bands warn deliberately.	The warning is a review label, not a request to delete or mask the data.

Example figure from R10C¶

R10C input reflectance overview — The real exported ENVI is reviewed spatially and spectrally after scale and NoData metadata are applied.

Explicitly unavailable diagnostics¶

cloud_shadow_water_saturation_masks — NOT EVALUATED: The raw ENVI contract does not encode all source QA mask classes in a common field.

Correction parameters¶

Observed status: WARN · open HTML · open JSON

Review correction geometry coverage, physical ranges, and persisted BRDF coefficient profiles without filtering them.

Checks in this stage¶

Check family	Count	Observed	Value(s)	Rule	What it asks	What to review
`output_exists:*`	2	PASS	2/2 present	Categorical contract	Does every declared canonical output exist? Each expected file is present at the recorded path.	A missing output is a stage failure; inspect the stage log before trusting downstream files.
`geometry_field_fraction`	1	PASS	1	warn `0.99`; fail `0.5`	Are all six correction geometry summaries present? At least 0.99 passes; 0.50–0.99 warns; at or below 0.50 fails.	Missing geometry limits correction reproducibility and interpretation.
`persisted_geometry_physical_range_review`	1	WARN	4	Categorical contract	Do persisted min/mean/max summaries lie within physical radian ranges? Zero fields requiring review passes; any out-of-range field warns.	Values stay unfiltered; investigate NoData contamination before changing correction logic.

Example figure from R10C¶

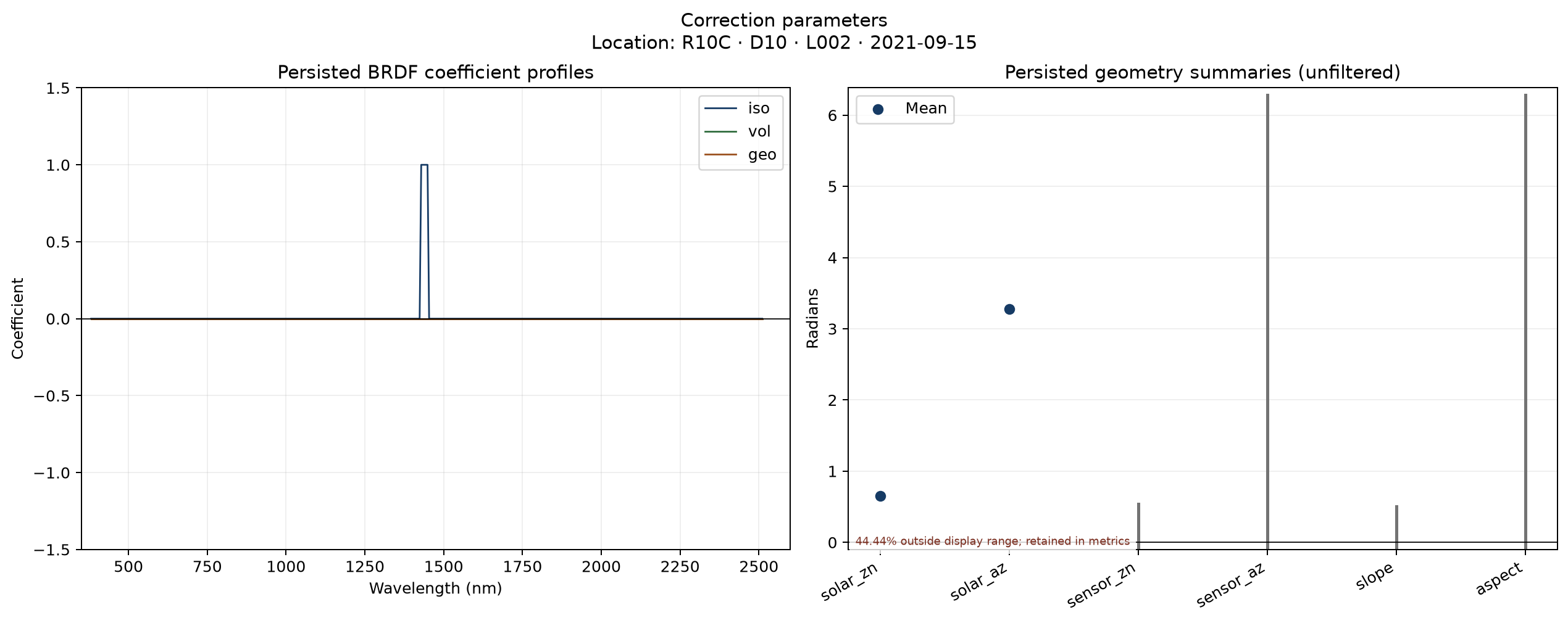

R10C correction parameter profiles — The real run displays fitted BRDF profiles and unfiltered geometry summaries; four fields are marked for range review.

Explicitly unavailable diagnostics¶

None for this stage in the real run.

BRDF and topographic correction¶

Observed status: WARN · open HTML · open JSON

Compare matched before/after products for support, magnitude, spectral behavior, and computational seams.

Checks in this stage¶

Check family	Count	Observed	Value(s)	Rule	What it asks	What to review
`output_exists:*`	2	PASS	2/2 present	Categorical contract	Does every declared canonical output exist? Each expected file is present at the recorded path.	A missing output is a stage failure; inspect the stage log before trusting downstream files.
`within_footprint_valid_reflectance_fraction`	1	PASS	1	warn `0.9`; fail `0.7`	How complete is spectral support inside the observed flight footprint? Above 0.90 passes; 0.70–0.90 warns; at or below 0.70 fails.	Separate real missing support from rectangular background outside the flight track.
`negative_reflectance_fraction`	1	PASS	0	warn `0.01`; fail `0.05`	How often is valid reflectance negative? Below 0.01 passes; 0.01–0.05 warns; at or above 0.05 fails.	Review scaling, correction behavior, shadows, and wavelength-specific artifacts.
`usable_band_reflectance_above_1_2_fraction`	1	PASS	1.41415e-05	warn `0.01`; fail `0.05`	How often do wavelengths not already labeled poor-quality exceed 1.2? Below 0.01 passes; 0.01–0.05 warns; at or above 0.05 fails.	Inspect scaling and spectral regions; all-band values remain separately reported.
`known_bad_spectral_bands_retained`	1	WARN	68	Categorical contract	Were established poor-quality wavelength regions recognized and retained? No labeled bands passes; retained labeled bands warn deliberately.	The warning is a review label, not a request to delete or mask the data.
`absolute_correction_q99`	1	PASS	0.00389395	warn `0.2`; fail `0.5`	Is the extreme correction magnitude bounded? Below 0.20 reflectance passes; 0.20–0.50 warns; at or above 0.50 fails.	Review spatial support and affected wavelengths for overcorrection.
`maximum_chunk_seam_score_after`	1	NOT EVALUATED	null	warn `1.5`; fail `2.5`	Are gradients at application boundaries larger than ordinary neighboring gradients? Below 1.5 passes; 1.5–2.5 warns; at or above 2.5 fails.	A genuine landscape edge can coincide with a boundary, so inspect the map before concluding it is computational.

Example figure from R10C¶

R10C before and after correction overview — Matched maps and spectra show the combined persisted BRDF/topographic result; the pipeline does not store a topo-only intermediate.

Explicitly unavailable diagnostics¶

chunk_seam_score — NOT EVALUATED: No internal application boundary was present or recorded for this stage.
separate_topographic_and_brdf_attribution — NOT EVALUATED: The canonical stage persists only the combined corrected cube, not a topographic-only intermediate.
illumination_and_geometry_residual_models — NOT EVALUATED: Standard QA does not reopen the source HDF5 ancillary rasters; enable a future ancillary-aware deep run.
chunk_invariance_rerun — NOT EVALUATED: This report inspects the produced cube but does not rerun correction under an alternate chunk configuration.

Spectral convolution and brightness¶

Observed status: PASS · open HTML · open JSON

Check convolved reflectance support and independently audit every persisted Landsat brightness adjustment.

Checks in this stage¶

Check family	Count	Observed	Value(s)	Rule	What it asks	What to review
`output_exists:*`	14	PASS	14/14 present	Categorical contract	Does every declared canonical output exist? Each expected file is present at the recorded path.	A missing output is a stage failure; inspect the stage log before trusting downstream files.
`within_footprint_valid_reflectance_fraction`	1	PASS	1	warn `0.9`; fail `0.7`	How complete is spectral support inside the observed flight footprint? Above 0.90 passes; 0.70–0.90 warns; at or below 0.70 fails.	Separate real missing support from rectangular background outside the flight track.
`negative_reflectance_fraction`	1	PASS	0	warn `0.01`; fail `0.05`	How often is valid reflectance negative? Below 0.01 passes; 0.01–0.05 warns; at or above 0.05 fails.	Review scaling, correction behavior, shadows, and wavelength-specific artifacts.
`usable_band_reflectance_above_1_2_fraction`	1	NOT EVALUATED	null	warn `0.01`; fail `0.05`	How often do wavelengths not already labeled poor-quality exceed 1.2? Below 0.01 passes; 0.01–0.05 warns; at or above 0.05 fails.	Inspect scaling and spectral regions; all-band values remain separately reported.
`known_bad_spectral_bands_retained`	1	NOT EVALUATED	null	Categorical contract	Were established poor-quality wavelength regions recognized and retained? No labeled bands passes; retained labeled bands warn deliberately.	The warning is a review label, not a request to delete or mask the data.
`brightness_coefficient_application:*`	4	PASS	2.625e-08, 2.67092e-08, 2.76194e-08, 2.61431e-08	warn `null`; fail `0.0001`	Does each persisted Landsat before/after pair reproduce its configured gain? Maximum absolute fitted gain error at or below `1e-4` passes.	Failure means application drift; passing does not prove that the empirical coefficient is scientifically optimal.

Example figure from R10C¶

R10C convolved sensor overview — The real stage uses the same spatial/spectral support diagnostics as other reflectance products.

R10C Landsat ETM+ brightness audit — Configured and fitted brightness adjustments overlap; this verifies application, not scientific optimality of the coefficients.

Explicitly unavailable diagnostics¶

known_bad_spectral_band_classification — NOT EVALUATED: The ENVI header did not provide one wavelength for every band.
per_band_srf_valid_coverage — NOT EVALUATED: The stage output contract does not currently persist the sampled SRF weights used for each output band.

Parquet extraction and merge¶

Observed status: PASS · open HTML · open JSON

Verify declared analysis products, DuckDB readability, row counts, schema width, and extracted-versus-merged structure.

Checks in this stage¶

Check family	Count	Observed	Value(s)	Rule	What it asks	What to review
`output_exists:*`	18	PASS	18/18 present	Categorical contract	Does every declared canonical output exist? Each expected file is present at the recorded path.	A missing output is a stage failure; inspect the stage log before trusting downstream files.
`readable_parquet_outputs`	1	PASS	18	Categorical contract	Can DuckDB read at least one declared Parquet product? One or more readable tables passes; none fails.	Inspect incomplete files, schema problems, and discovery paths.

Example figure from R10C¶

R10C Parquet extraction and merge overview — The real run compares rows, schema width, and file size for 18 readable extracted and merged tables.

Explicitly unavailable diagnostics¶

None for this stage in the real run.

Reproduce the stage reports¶

spectralbridge-stage-qa \
  --flightline-dir outputs/<flightline_id> \
  --mode deep --force

deep changes deterministic sampling depth, not the scientific correction. See Stage-by-stage scientific QA for schemas, fixed plot ranges, and implementation details.
